FireSentry FSX by Honeywell - Detekcija Plamena, (modeli FS24X i FS20X)

Detektor plamena koji koristi sa napredne algoritme i UV / IR talase sa dometom 60 m.
Postoji više modela: Fire Sentry FS24X koristi poslednju Multi-Spectrum Triple IR (IR/IR/IR/Visible), a FS20X (UV/Dual IR/Visible) uz postojanje više pod varijanti modela za različite aplikacije.

Zašto izabrati FireSentry detektore plamena?

• Domet senzora do 60 m
• 110 stepeni ugao gledanja senzora
• 4-20 mA analogni izlaz, HART
• RS-485 ModBus
• Dva relejna izlaza SPDT
• IP66 stepen zaštite
• Kućište od nerđajućeg čelika
• ATEX, SIL2
• FirePics mogućnost
• 24 Vdc
• Verzija od aluminijuma i od nerđajućeg čelika

• Opciona test lampa ATEX
• Opcioni dodatak za dovođenje vazduha radi čišćenja

Kliknite ovde za tehničku dokumentaciju o
Fire Sentry FS24X

Kliknite ovde za tehničku dokumentaciju o
Fire Sentry FS20X

Za izbor modela koristitie selection wizard.

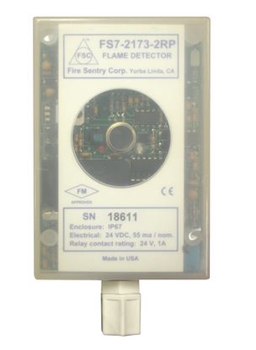

FS7 detektor plamena za čiste sobe

Multi-spectral WideBand IR™, Near Band IR and Visible Band flame detectors are designed specifically for semiconductor Clean Room fire protection applications.

Zašto izabrati FS7 detektor plamena?

• Field of view: 120° horizontal and vertical
• Napajanje: 24 VDC nominalno (18-28 VDC) - regulisano
• Operating temperature range: 0° do +70°C
• Unique two-stage fire detection response
• Immune to false alarm sources
• Detects hydrocarbon and non-hydrocarbon fires

• Kliknite ovde za tehničku dokumentaciju o
  FS7®

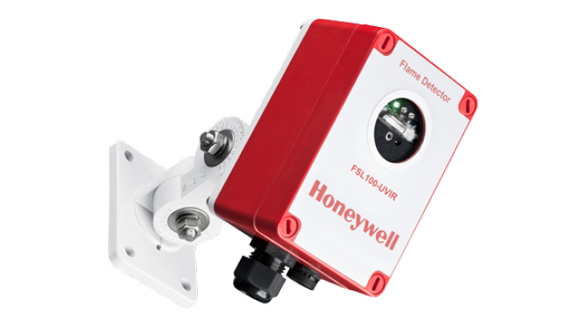

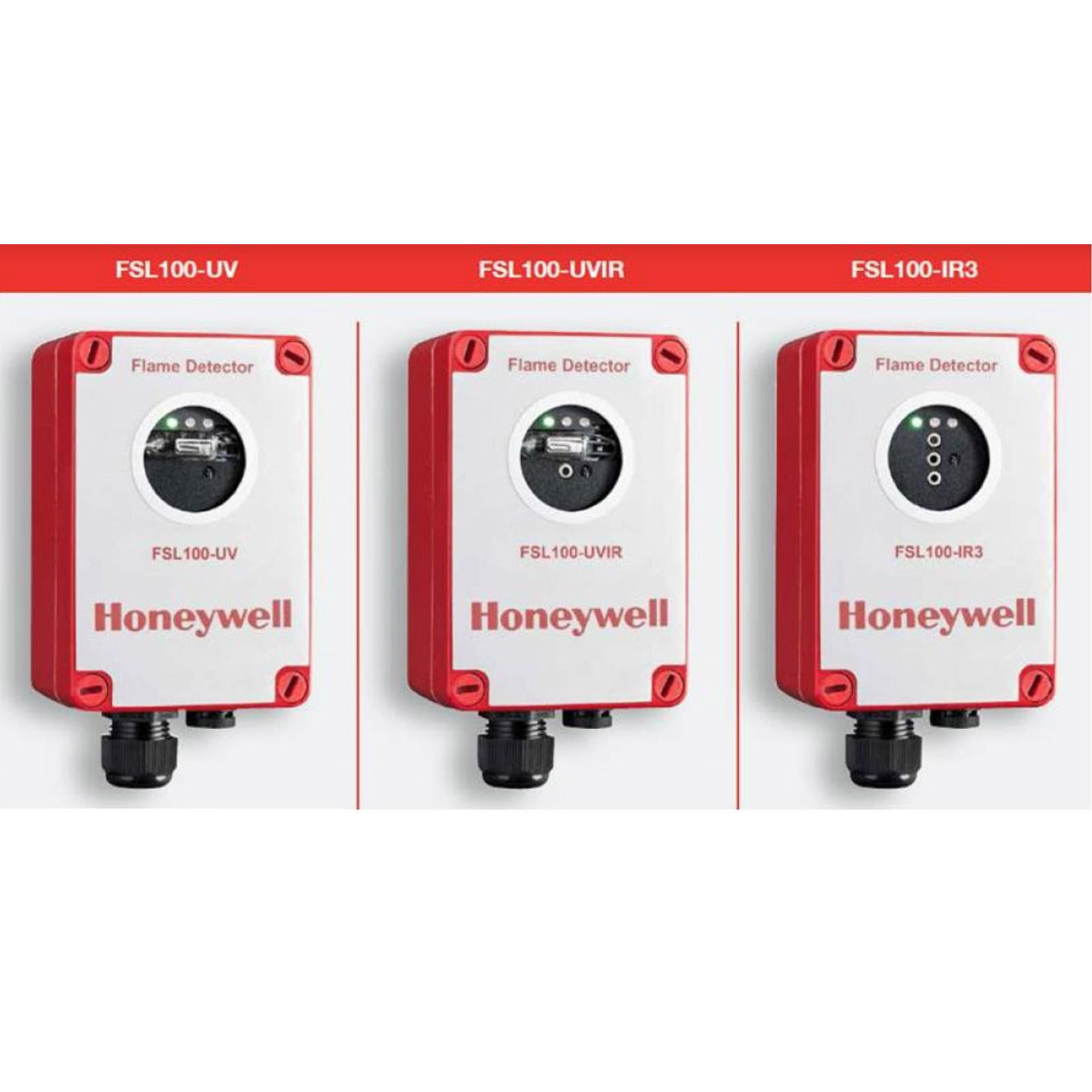

FSL 100 serija detektora plamena

FSL100 serija detektora plamena ima modele tri modela: UV, UV/IR i IR3+ detektora plamena sa relejnim i 4-20mA izlazom u ATEX kućištu.

Zašto izabrati FSL 100?

• Sofisticiran senzor i analiza signala za brzo detektovanje požara i odbijanje lažnih alarma
• malih dimenzija za laku montažu.
• sa širokim poljem vidljivosti mogu da detektuju razne vrste plamena uključujući i od izvora plamena hidrokarbonskog i ne hidrokarbonskog izvora.
• Sveobuhvatno rešenje za praćenje plamena
• Tri verzije: UV, UV i IR, trostruki IR
• GRP kućište
• 12-14Vdc, 4-20mA i relejni izlazi..

• Detekcija plamena, opciona test lampa

Kliknite ovde za tehničku dokumentaciju o
FSL 100 seriji detektora plamena



FAAST aspiratorska detekcija dima

FAAST Fire Alarm Aspiration Sensing Technology™ is a new generation of smoke detectors from Honeywell, which uses advanced technologies and software to deliver the earliest and most accurate smoke detection. The FAAST device range is designed to protect people and assets in even the most challenging environments where standard detection methods fail or are prone to false alarm, or in areas which may not previously have been protected.

Zašto izabrati FAAST ?

• Earliest warning detection with the highest level of false alarm immunity
• Reduced installation and maintenance costs
• Extended device lifetime using advanced filtration techniques
• Remote monitoring capabilities and richer reporting via TCP/IP connectivity

• FAAST = Fire Alarm Aspiration Sensing Tehnology

Kliknite ovde za tehničku dokumentaciju o
FAAST kao i prorgamima za proracun PpieIQ i dodatnim materijalima o razlicitim modelima

Sistemi za uzorkovanje gasa prilagođeni određenoj aplikaciji

Bespoke gas sampling sytems tailored for application with up to SIL2 rating.

• Sample Gas Probes
  A comprehensive range of advanced sample probes in a modular design. Heated or non heated, up-stream or down-stream filters, also for hazardous areas.
• Sample Gas Filters
  Particularly designed for sample conditioning systems. Filterelements easy to change due to the unique connection. Easy maintenance also for the heated version.
• Sample Gas Coolers
  A very effective range of heat exchangers made from various materials in connection with high performance cooling systems provides exceptional stable dew points, an essential issue for trouble free analyser systems. Compact physical dimensions require little installation space. A broad range of accessories help to discharge the condensate efficiently.

• Sample Gas Pumps
  A rugged design proven in hundreds of sample systems, pumps condensate carrying gas streams. Low noise emmissions due to mounting console with shock absorbers.
• Flow Meters
  Material composition and configuration are particulary made for sample conditioning systems. Needle valve and flow controller are available optional.
• Accessories
  Cabinets, needle valves, directional valves, fittings and various pressure regulators for the professional design of sample systems.


Molimo da nas kontaktirate za više informacija i kataloge.

Alarmi

Zvučni, svetlosni i drugi alarmi ATEX sertifikovani kao i za sigurnu zonu.

• Zvučni alarmi
• Svetlosni alarmi
• Kombinovano zvučno - svetlosni alarmi
• Ručni javljači - alarmi
• Uvodnice
• Svelosni upozoravajući paneli
• Osvetljenja

• Veliki izbor najrazličitijih opcija i različitih sertifikata




Molimo da nas kontaktirate za više informacija i dodatne kataloge proizvoda.

Ručni prenosni HART komunikator

Honeywell MC Toolkit Handheld Configurator is used by maintenance engineers, managers and instrument technicians to monitor, configure, diagnose and manage smart field devices. It manages Honeywell DE devices as well as any supplier’s HART devices. The latest MCT404 model also authenticates ISA100 wireless devices and supports Honeywell’s PIE tool to manage UDA2182 analyzers and UDC Controllers.

• The MC Toolkit (model MCT404) Handheld Configurator uses the CN70 Series Intermec PDA for managing smart field devices. It is available in intrinsic and non-intrinsic safe versions for use in safe as well as hazardous areas. The toolkit comes with two software applications
• ◦The MC Toolkit software application for configuring Honeywell DE transmitters such as SmartLine Pressure, ST 3000 pressure and STT 3000 temperature transmitters and Gas Detectors.


• •The Field Device Configurator (FDC) for configuring any HART 5, HART 6, and wired HART 7 devices with a device description (DD/EDDL) file compliant with the HART Communication Foundation.
• •Each MC Toolkit is loaded with all HART device description files so that any HART device can be configured utilizing common, universal and device-specific commands.​

dokumentacija za komunikator

Kalibracija i Servis

Tokom vremena, čak i najprecizniji merni senzori su izloženi smanjenju perfomansi usled korišćenja, zloupotrebe, odstupanja, ili starenja. Kalibracija je esencijalna da bi povratila senzor u stanje “kao nov”. ISO 9000, EN, ATEX i mnogi drugi standardi specificiraju maksimalni vremenski period između rekalibracije senzora. Mnogi korisnici zato usvajaju standarni period kalibracije na svakih šest meseci ili češće, u zavisnosti od senzora i aplikacije.

• Kalibracija, zamena senzora, zamena delova i servis svih Honeywell detektora gasa od strane inženjera koji imaju Honeywell sertifikate.


• Potrebna vam je kalibracija detektora gasa drugih proizvođača? Kontaktirajte nas za ponudu.
• Ne čekajte još jedan dan da bi ste bili sigurni da su vaši detektori gasa kalibrisani da rade pouzdano.

kalibracija i servis detektora gasa dokumentacija
